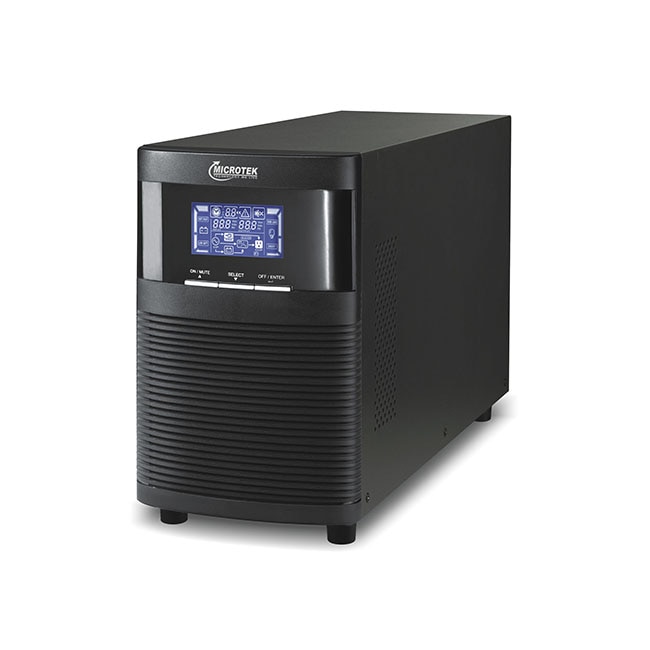

Microtek ONLINE UPS E² Series 1KVA/ 24VDC-IB

Microtek High Frequency Online UPS provides Uninterrupted Pure Power for Critical Applications such as Computer Network, Servers, Cyber Cafes, ATM Machines and CCTV Camera etc.

Model Name: Online UPS E²-IB

Rated Capacity: 1 KVA / 800 Watts

Phase: Single Phase In, Single Phase Out

DC Voltage: SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES)

Key Features

High Frequency Double-Conversion Online Technology.

IGBT and Micro Controller Based.

Rugged Product-improves Power Quality and Reliability.

Generator Compatible.

Advanced PFC Technology.

Static Bypass-improves Reliability.

OVCD Protection-Saves Online UPS & Connected Load from High Voltage.

Ferrite Rings-Reduces EMI Noise which interfere with Machine Load.

LCD Display.

Technical Specifications :-

MODEL NAME & NUMBER - ONLINE UPS E²-IB/ NM24EM1KK11-IB

CAPACITY - 1KVA/800W

DC VOLTAGE SYSTEM - 24VDC

INPUT

Voltage Range - 110VAC ± 5 % ~ 300 VAC ± 5 %

Frequency Range - 40Hz ~ 70 Hz

Phase - Single phase with ground

Power Factor - ≥ 0.99 @ full load

OUTPUT

Output voltage - 200/208/220/230/240VAC

AC Voltage Regulation - ± 1% (Batt. Mode)

Frequency Range (Batt. Mode) - 50 Hz ± 0.25 Hz or 60Hz ± 0.3 Hz

Current Crest Ratio - 3:1

Harmonic Distortion - ≤ 2 % THD (Linear Load) ; 4 % THD (Non-linear Load)

Overload Capability - 105% ~ 110%: UPS shuts down after 10 minutes at battery mode or transfer to bypass when the utility is

normal. 110% ~ 130% : UPS shuts down after 1 minute at battery mode or transfer to bypass when the

utility is normal. >130%: UPS shuts down after 3 seconds at battery mode or transfer to bypass when the

utility is normal.

Transfer Time - Zero

Inverter to Bypass - < 4 ms (typical 2.5ms)

Waveform (Batt. Mode) - Pure Sinewave

EFFICIENCY

Efficiency(AC Mode/Batt.Mode) - 88% / 83%

Battery Type & Numbers - SMF 12V / 9AH x 2 Nos. (IN-BUILT BATTERIES)

Charge Current (Min.to Max. Range) - 1A

Dimension (LxWx H) in mm - 282x145x220

Net Weight (Kgs.) - 9.8 Kgs.

Operation Humidity - 20-95 % RH @ 0- 40°C (non-condensing)

Noise Level - Less than 50dBA @ 1 Meter (With fan speed control)

LED/LCD Indication - LCD Display Indications

Smart RS-232 or USB - Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux, Unix and MAC

Optional SNMP - Power management from SNMP manager and web browser

Warranty - One Year
