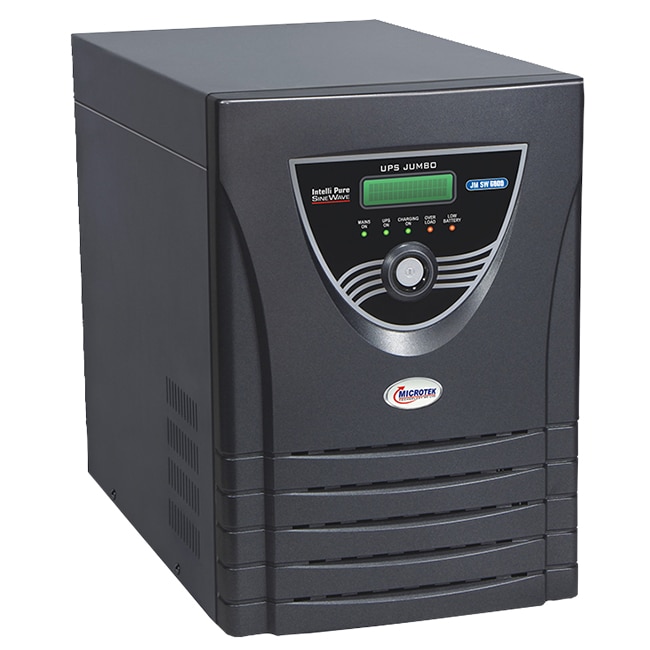

Microtek Inverter JM SW 5500/48V

MICROTEK UPS JM SW 5500/48V

Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.

Category:UPS Jumbo High Capacity Models

DESCRIPTION

It is Static UPS with LCD Display. Pure Sinewave Output. Micro Processor Based PWM Technology using Hi-Grade Mosfets. Advanced Battery Management (ABM) for Longer Battery Life & Quick Changing.

Rated Capacity 5.2 KVA

Output Power 4160 Watts

Battery 4 Battery System (48 VDC)

Waveform Pure Sinewave

Warranty 2 Years

Key features

Micro Processor based PWM Technology using Hi-Grade Mosfets.Pure Sinewave UPS.

Static UPS with LCD Display.Pure Sinewave Output.

Advanced Battery Management (ABM) for Longer Battery Life & Quick Charging.

Smart Overload Sense, Short Circuit and Over Temperature Protection.

Safely suited to run Computers & Other IT Applications.

Generator Compatible.

TECHNICAL SPECIFICATIONS

INPUT

Input Voltage (Standard range) 110 V ~ 280 V

Input Voltage (Narrow range) 180V ~ 265 V

OUTPUT

Output Voltage (Mains Mode) Same as Input

Output Voltage (UPS Mode) 180~230 V (± 10V)

Output Waveform (Mains Mode) Same as Input

Output Waveform (UPS Mode) Pure Sinewave

CHANGEOVER

Switchover from Mains to UPS and UPS to Mains Automatic

UPS Transfer Time ? 15 msec.

TECHNOLOGY

Design Micro Controller Based Design

Battery Charging Current 17 Amps ± 3 Amps

UPS Overload / UPS Short-circuit ?110% / ? 300%

Browns on Mains Voltage 100V ± 10V Efficiency (Battery Mode) > 80%

Auto Reset Feature Yes

Input DC Range 42 V ~ 56.8 V

Air Conditioner TDR Upto 2.0 Tons
