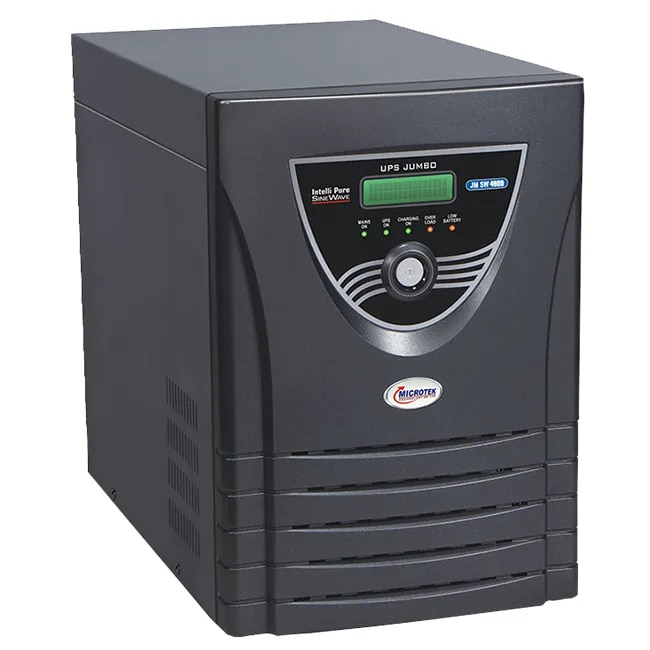

Microtek Inverter JM SW 4000/48V

Microtek is the country’s Largest Power Products manufacturer. It is also India’s most preferred and most awarded brand.

Microtek UPS Jumbo JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance. It is Static UPS with LCD Display. Pure Sinewave Output. Micro Processor Based PWM Technology using Hi-Grade Mosfets. Advanced Battery Management (ABM) for Longer Battery Life & Quick Changing.

This Jumbo JW SW 4000 4KVA 48V DC higher capacity model Sinewave home ups system is 4 numbers of 12V external battery connected in series (48V DC) and 230V 50HZ output suitable for three and four bed room house backup applications.

Features - Jumbo JW SW 4000/ 48V DC Sine wave Home UPS

Pure Sine wave output Waveform

Micro Processor based PWM Technology using Hi-Grade Mosfets.Pure Sinewave UPS.

Static UPS with LCD Display.

Advanced Battery Management (ABM) for Longer Battery Life & Quick Charging.

Smart Overload Sense, Short Circuit and Over Temperature Protection.

Safely suited to run Computers & Other IT Applications.

Generator Compatible.

SPECIFICATIONS - Jumbo JW SW 4000/ 48V DC Sine wave Home UPS

Brand - Microtek

Model JW SW 4000

Capacity 3.7KVA, 2560Watts

Battery Voltage 48V DC

No of Batteries Four

Output Voltage (Mains Mode) Same as Input

Output Voltage (UPS Mode) 200V~ 230V ± 10%

Wave form (UPS Mode) Pure Sinewave

Input Voltage (standard range) 110 V ~ 280 V

Input Voltage (Narrow range) 180V ~ 265 V

Switchover on Operation Automatic

UPS Transfer Time ? 15 milli sec

.Warranty 24 Months Warranty

Dimensions (L*W*H) in mm 510x335x410 mm

Weight in Kgs (approx.) 35.9 Kgs

Warranty Service Support Onsite Warranty Service support by Microtek
