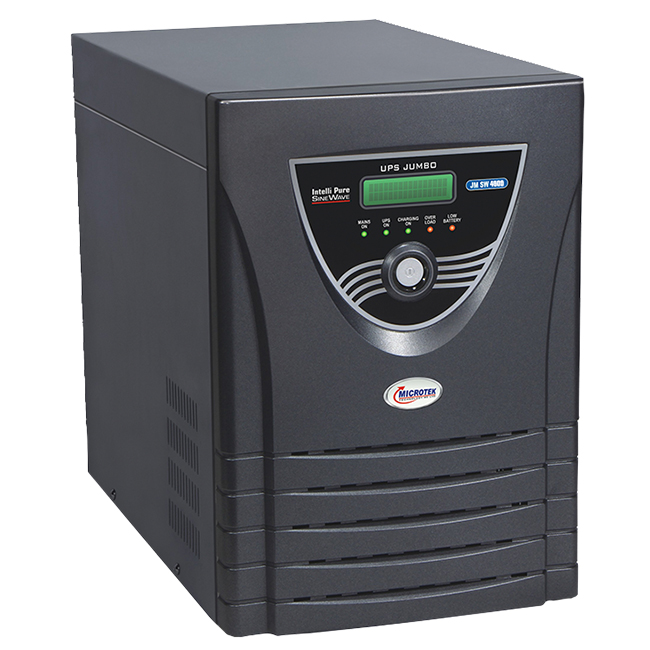

Microtek UPS JM SW 4000/48V
Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.
Weight – 35.900kg
Dimensions (L W H) – 510x335x410
It is Static UPS with LCD Display. Pure Sinewave Output. Micro Processor Based PWM Technology using Hi-Grade Mosfets. Advanced Battery Management (ABM) for Longer Battery Life & Quick Changing.
| Rated Capacity | 3.7 KVA |
| Output Power | 2960 Watts |
| Battery | 4 Battery System (48 VDC) |
| Waveform | Pure Sinewave |
| Warranty | 2 Years |
Key features
- Micro Processor based PWM Technology using Hi-Grade Mosfets.Pure Sinewave UPS.
- Static UPS with LCD Display.Pure Sinewave Output.
- Advanced Battery Management (ABM) for Longer Battery Life & Quick Charging.
- Smart Overload Sense, Short Circuit and Over Temperature Protection.
- Safely suited to run Computers & Other IT Applications.
- Generator Compatible.
| INPUT | |
| Input Voltage (Standard range) | 110 V ~ 280 V |
| Input Voltage (Narrow range) | 180V ~ 265 V |
| OUTPUT | |
| Output Voltage (Mains Mode) | Same as Input |
| Output Voltage (UPS Mode) | 180~230 V (± 10V) |
| Output Waveform (Mains Mode) | Same as Input |
| Output Waveform (UPS Mode) | Pure Sinewave |
| CHANGEOVER | |
| Switchover from Mains to UPS and UPS to Mains | Automatic |
| UPS Transfer Time | ≤ 15 msec. |
| TECHNOLOGY | |
| Design | Micro Controller Based Design |
| Battery Charging Current | 17 Amps ± 3 Amps |
| UPS Overload / UPS Short-circuit | ≥110% / ≥ 300% |
| Browns on Mains Voltage | 100V ± 10V |
| Efficiency (Battery Mode) | > 80% |
| Auto Reset Feature | Yes |
| Input DC Range | 42 V ~ 56.8 V |
| Air Conditioner TDR | Upto 1.0 Tons |
